How do I receive MOCA SDK actions in my third party API?

How do I receive MOCA SDK actions in my third party API?

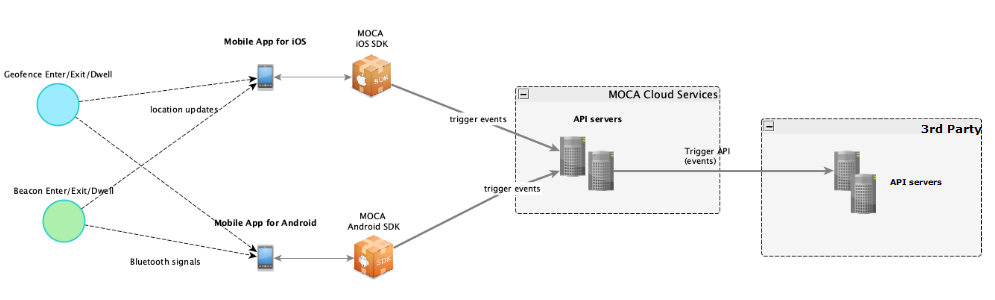

MOCA has a feature called Cloud-Hook. This feature enables the MOCA SDK embedded into the client mobile App to deliver location-triggered actions directly to the Third Party campaigns module and deliver segmented and personalized content to end users.






In order to support the usual business cases, the following location-based triggers are considered within the scope of this feature:

  • Enter geofence - triggered when a user enters a specific geographical location expressed as longitude, latitude and radius in meters.

  • Exit geofence - triggered when a user leaves the specific geographical location.

  • Enter beacon - triggered when a user enters into the range of a specific BLE beacon.




The MOCA Cloud-Hook API has the characteristics as described below:

  • HTTPS protocol only

  • OAuth 2.0 authentication scheme

  • UTF-8 encoding

  • The client must include a User-Agent header, Content-Type header and JSON payload.

  • The API provides endpoints and client credentials for both integration and production environments

  • The API supports a way to identify the calling app. We propose to include APP_KEY request header, for example:

    • X-App-Key: “yourproject-prod” or similar

  • The API uses conventional HTTP response codes to indicate success or failure of an API request.

    • Status 200 - call successful

    • Status 4xx - client errors

    • Status 5xx - internal server errors

For more details, please refer to https://en.wikipedia.org/wiki/List_of_HTTP_status_codes


Body Payload field description and example:

Attribute

Data type

Obligatory?

Description

user_id

string

No

Hashed email address provided by App to MOCA SDK when a user signs-in to the mobile app. Not available for not logged-in users.

event_id

string

Yes

Unique event ID (UUID) string.

t

timestamp

Yes

UTC timestamp, in milliseconds, generated by mobile device when the event was first observed. It uses a device clock.

st

timestamp

Yes

UTC timestamp, in milliseconds, generated by MOCA servers when the event was first received in MOCA Cloud. It uses a synchronized server clock.

user_pseudo_id

string

Yes

Unique anonymous user id assigned for each App installed on a device. It is always available.

event_name

string

Yes

Name of generated event. Available options are:

  • enter_geofence

  • exit_geofence

  • enter_beacon

  • enter_region

  • exit_region

geo_category

string

Yes

Geofence, beacon or region.

geo_item

string

Yes

Geofence, beacon or region name

geo_item_id

string

Yes

Geofence, beacon or region unique ID

geo_latitude

double

No

Device current latitude, if available.

geo_longitude

double

No

Device current longitude, if available.

geo_accuracy

double

No

Device current location accuracy, in meters, if available.

device_type

string

Yes

Device type (e.g. iPhone).

device_model

string

Yes

Device model name (e.g. iPhone 11)

os

string

Yes

Device operating system name (e.g. Android)

os_version

string

Yes

Device operating system version (e.g. 14.6)

lang

string

Yes

Device preferred language ISO code

location_status

string

Yes

Location permission status

session

number

Yes

User sequential session number

app_status

string

Yes

Indicates app running status: foreground or background when the event was generated.

app_version

string

Yes

App version string.

moca_version

string

Yes

MOCA SDK version that generated this event.

dwell_time

long

No

Optional. Dwell time, in seconds, that a user stayed within a geofence or beacon range to trigger this event. By default it is null.

user_properties

JSONObject

No

Optional. A bag of user properties as set by MOCA SDK API.



JSON body = [{

"event_id" : "123e4567-e89b-12d3-a456-426652340000",

"t" : 1626254802012,

"st": 1626254913412,

"user_pseudo_id": "001122334455deeff",

"user_id" : "hashed-email-here",

"event_name" : "enter_beacon",

"geo_category": "beacon",

"geo_item": "store-7-cashier-beacon-1",

"geo_item_id": "e4a7",

"geo_latitude": null,

"geo_longitude": null,

"geo_accuracy": null,

"device_type": "iPhone",

"device_model": "iPhone 11",

"os": "iOS",

"os_version": "14.6",

"lang": "es",

"location_status" : "always",

"session": 16,

"app_status": "foreground",

"app_version" : "1.2",

"moca_version": "3.6.0"

"dwell_time": null,

“user_properties” : {

key1: value2

hey2: value2

...

}

}]
